4 Seats ADC 48V 3.7KW Electric Patrol Vehicle with Customized Logo

Name: 4 Seats ADC 48V 37KW Electric Patrol Vehicle with Customized Logo
Brand: EXCAR
Price: 1 USD

Brand Name : EXCAR

Model Number : A1S4

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : Negotiate

Payment Terms : D/A, D/P, Western Union, MoneyGram, L/C, T/T

Supply Ability : 300 units per month

Delivery Time : 7 days after received your deposit

Packaging Details : LCL shipment Packing:roof move-off packing, steel frame , carton paper cover.

Transaxle : Italy graziano alex

Warranty : 1 year

Production time : 7-15 days after deposit paid

Body color : White or based on panton number

Brand : EXCAR

Motor : ADC 48V 3.7KW

Chassis : Aluminum Chassis

Range : 70-90KM

Contact Now

Customized Logo Color 4 Seats ADC 48V 3.7KW Electric Patrol Car Electric Patrol Vehicle

Feature of Product:

Features
※ Italy Graziano Transaxle
※ Unique E-KEY
※ Electromagnetic Brake Makes Driving More Safty
※ Special Design LED Headlight
※ Advanced Disc Brake Technology
※ Three-point Seat Belts
※ Rear View Mirror And Driver/Passenger Side Mirrors
※ Automotive Safty Glass Windshield
※ Deep Cup Holders
※ Comfortable,Contoured Seats
※ 100% waterproof accelerator

Performance

Item	Description
system	DC system	AC system
Passenger Capacity	4	4
Climbing capacity(full load)	30%	35%
Max. forward speed	23km/h	45km/h
Endurance mileage	70-90km	80-90km
Charging time	8-10 hours	8-10 hours
Max.loading weight	360kgs	360kgs
Min.turning radius	3.9m	3.9m
Max. movement after brake at speed of 20km/h	≤4m	≤4m

1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Item	Description
Overall dimensions (L x W x H)	3200x1200x1900mm
Ground clearance	114mm
Wheelbase	2490mm
Front wheel tread (mm)	860mm
Rear wheel tread (mm)	970mm

Body and Frame

Item	Description
Frame & Chassis	Aluminum alloy beam, bended
Body	PP engineering plastic front and rear body cover, injected
Roof	Glass fiber reinforced plastic
Windshield	Organic glass (PMMA),one-piece or two pieces
Roof supports	Imbedding black coating steel tube in the plastic support
Cushion	Reborn sponge with artificial leather and plastic bottom cover
Backrest	Reborn sponge with artificial leather and plastic cover
Armrest	Plastic
Floor mat	Anti-skidding rubber
Rear basket	Plastic
Golf bag holder	Plastic support with nylon strap
Dashboard	Black plasticmaterial, battery power indicator, ignition key on it
Beverage holders	4 pcs cups holders, 2 pcs for each side
Side trim	Plastic, black
Score card holder	On the steering wheel

Electric System

Item	Description
Lights	48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light),
Horn	Electric horn, 48V
Reverse buzzer	Electric, 48V
Combination switch	Control the lights and horn
Digital Meter (optional)	Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock

Packing & Shipping

Model	Dimension(mm)		20” container		40” container
M1S2+2FF	With roof & windshield	Without roof & windshield	With roof & windshield	Without roof & windshield	With roof & windshield	Without roof & windshield
M1S2+2FF	320012001800	320012001400	4 units	8units	8units	16units

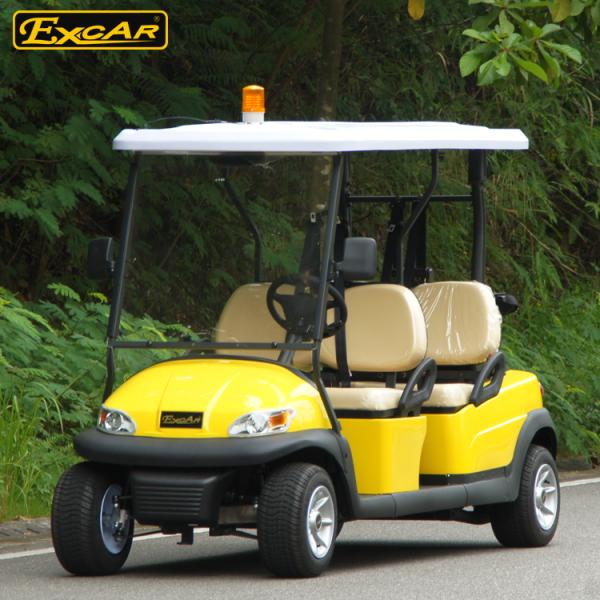

Product Image

4 Seats ADC 48V 3.7KW Electric Patrol Vehicle with Customized Logo

Contact: Pauline Liu
Dongguan Excellence Golf&Sightseeing Car Co.,ltd
Mobile: +86-13546943585

www.excar.com.cn
